Powered by efficient pneumatic drives

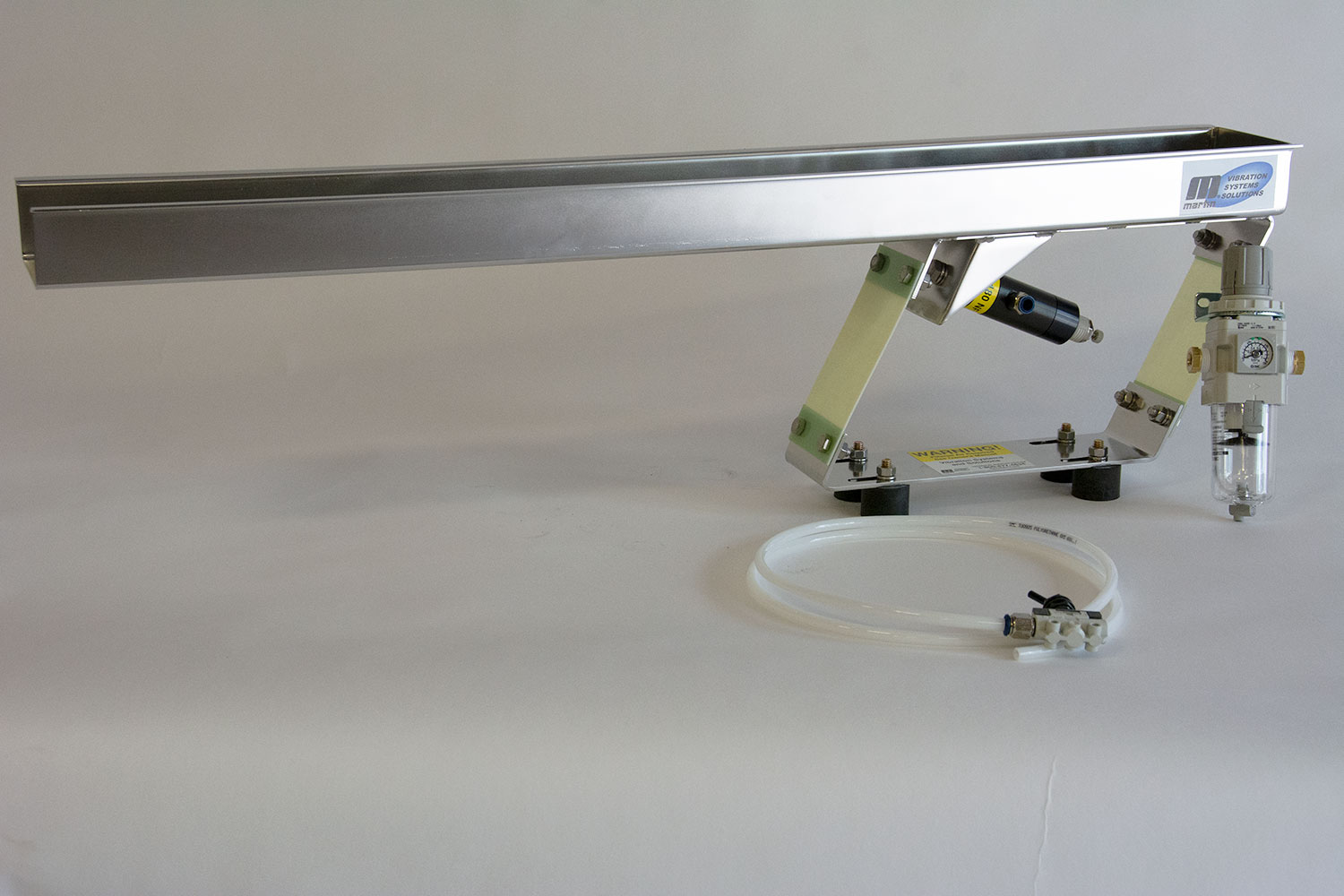

MARTIN® E-Z™ Vibratory Feeders meet the needs of feeding applications up to 8 tph. The simple, all stainless steel fabrication is E-Z to clean, perfect for food, bakery, chemical and pharmaceutical applications. The drive and suspension components are designed to operate in hazardous or wet environments.

Units are available in various configurations:

  1. Standard, “off-the-shelf” units.
  2. Custom sizes.
  3. Drive and suspension only.

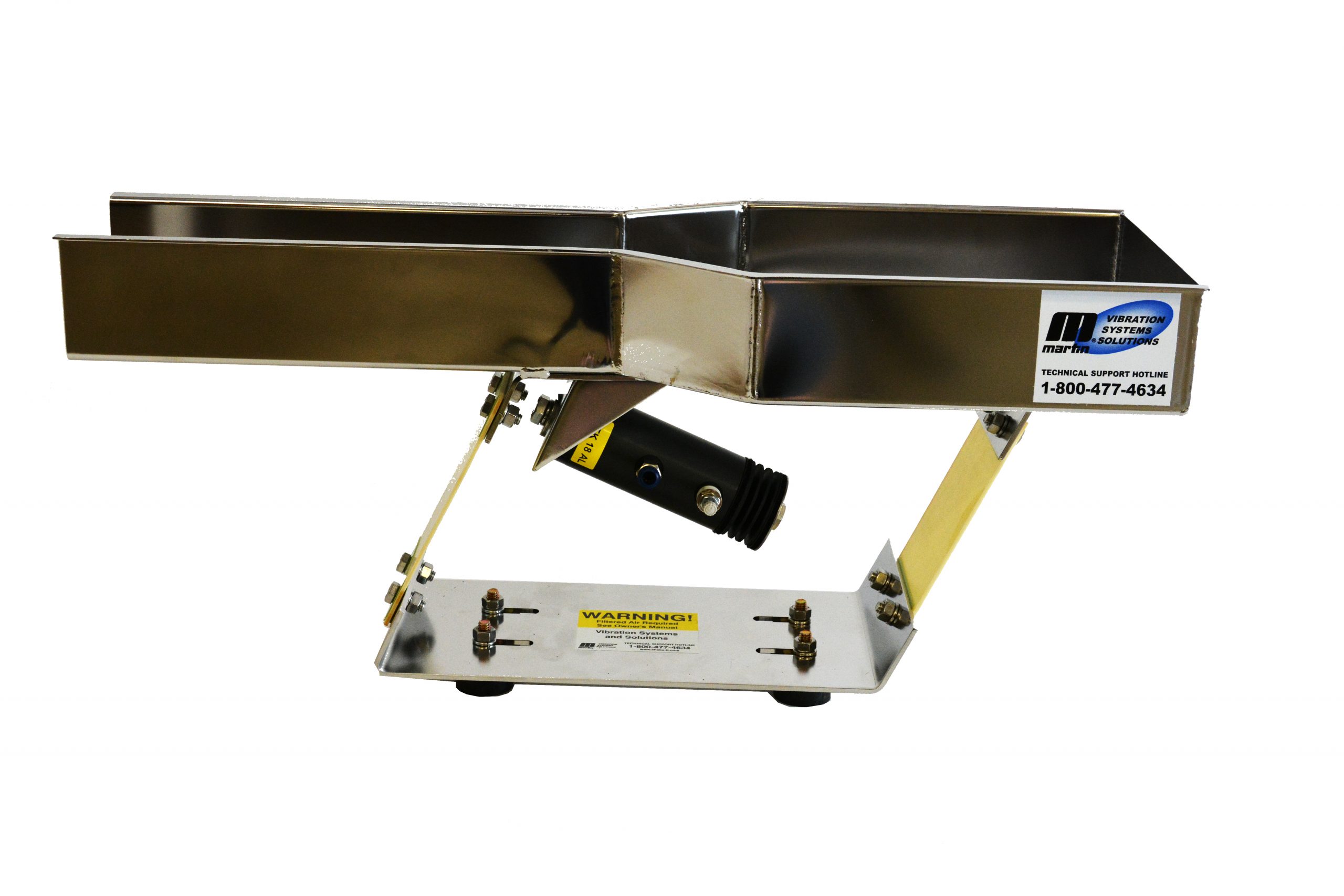

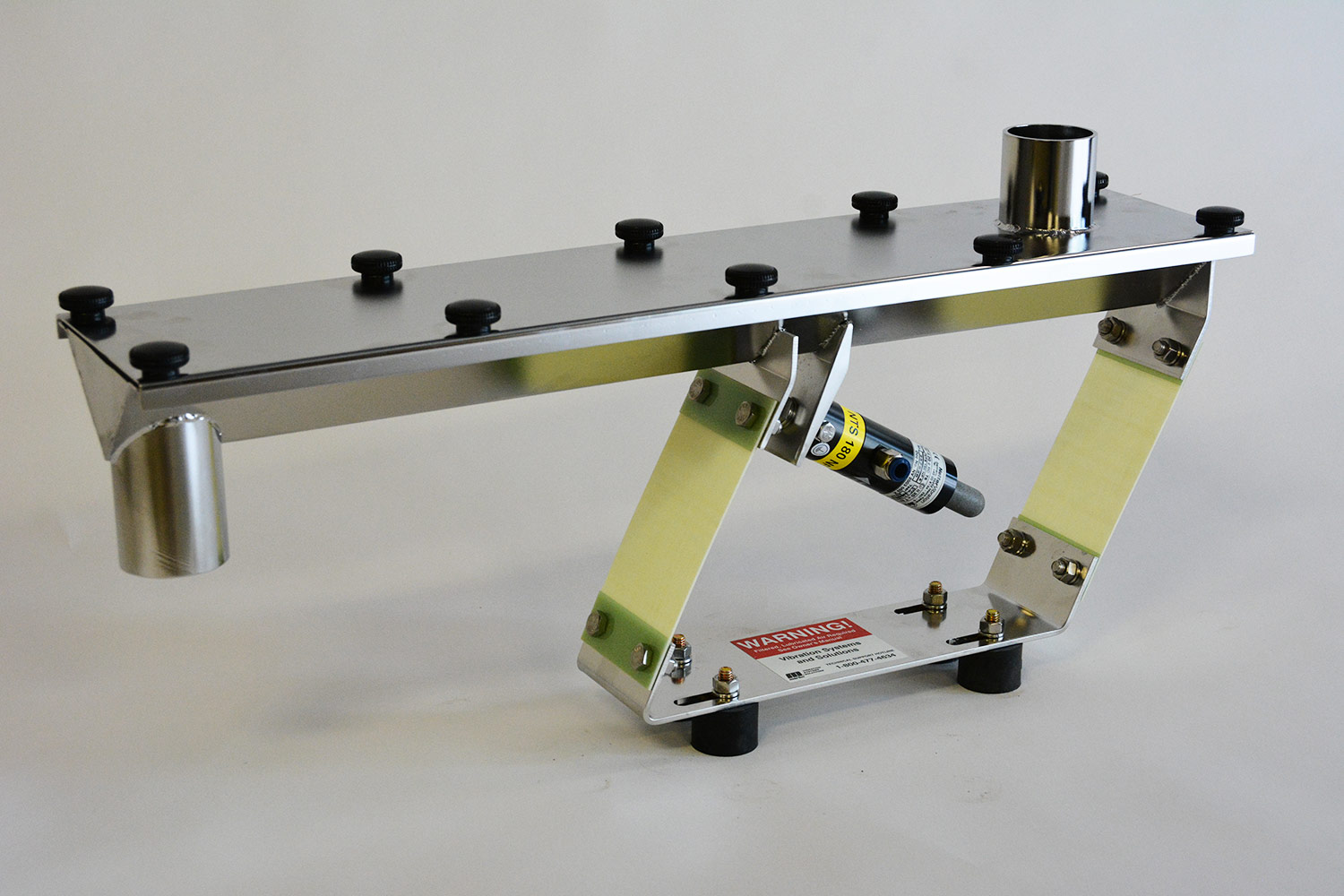

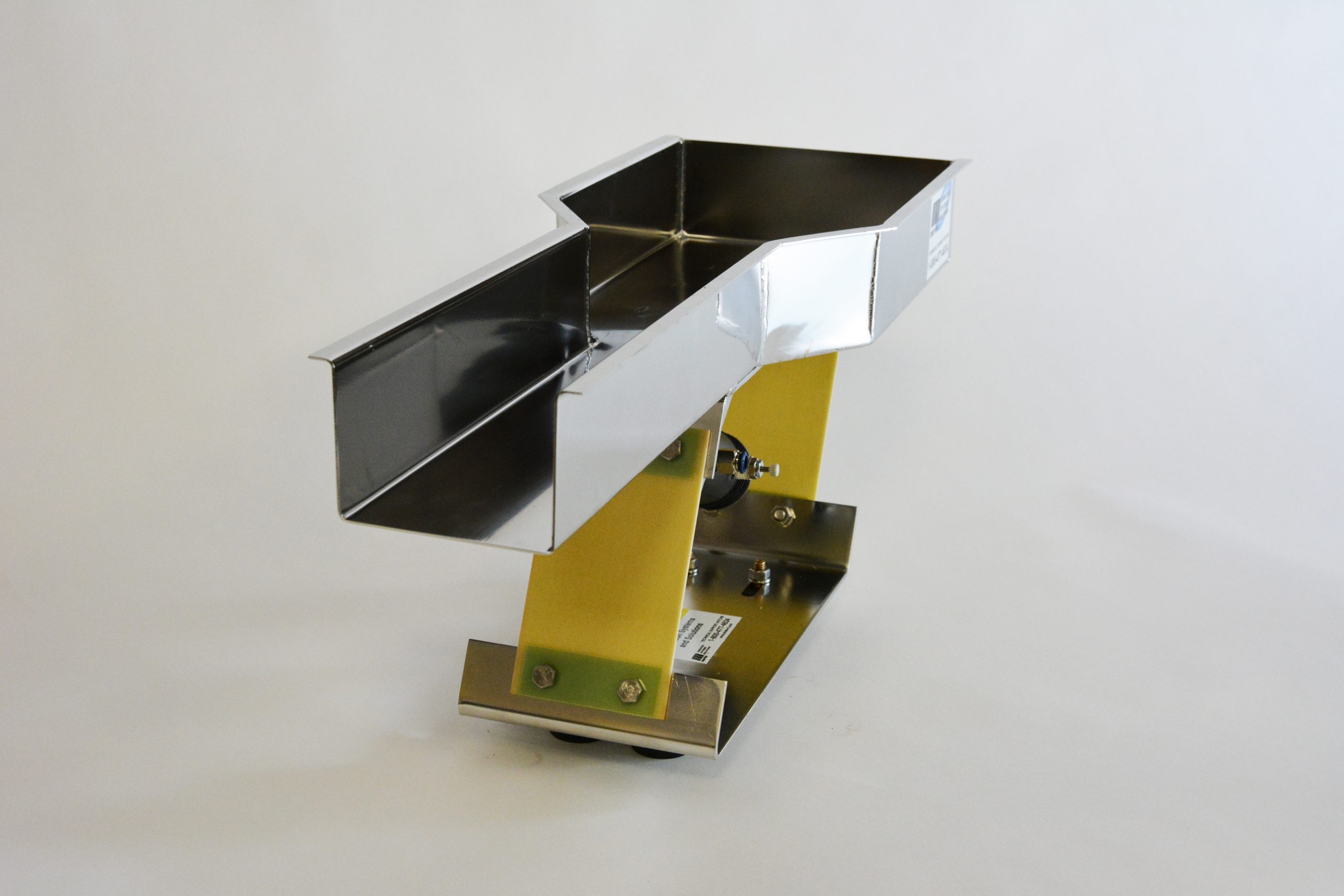

  4. Flat, vee or custom trays available.
E-Z FEEDER DIMENSIONS
AIR COMSUMPTION CFM (L/MIN)
A B C D E F G 30PSI(2BAR) 60PSI(4.1BAR)
EZ 2 4x24 24(610) 4(102) 2(51) 8.25(210) 6.75(171) 2(51) 12(305) .49(14) 1.25(57)
EZ 2 3x18 18(457) 3(76) 2(51) 8.25(210) 6.75(171) 2(51) 6(152)
EZ 2 6x20 20(508) 6(152) 2(51) 8.25(210) 6.75(171) 2(51) 8(203)
DRIVE ONLY 10.13(257) 3(76) N/A 8.25(210) 6.75(171) 2(51) N/A
EZ 4 5x24 24(610) 5(127) 2(51) 8.25(210) 6.75(171) 2(51) 12(305) .71(20) 2.11(99)
EZ 4 6x18 18(457) 6(152) 2(51) 8.25(210) 6.75(171) 2(51) 6(152)
EZ 4 7x20 20(508) 7(178) 2(51) 8.25(210) 6.75(171) 2(51) 8(203)
DRIVE ONLY 10.13(257) 4(102) N/A 8.25(210) 6.75(171) 2(51) N/A()
EZ 8 6x36 36(914) 6(152) 3(76) 8.25(210) 6.75(171) 2(51) 24(610) .92(26) 2.4(110)
EZ 8 8x30 30(762) 8(203) 3(76) 8.25(210) 6.75(171) 2(51) 18(457)
EZ 8 12x24 24(610) 12(305) 3(76) 8.25(210) 6.75(171) 2(51) 12(305)
DRIVE ONLY 10.13(257) 6(152) N/A 8.25(210) 6.75(171) 2(51) N/A
inches(mm) Standard sizes listed above. Call 1-800-477-4634 for special configurations.

Features

Clean, Sanitary Design

Standard, all stainless steel fabrication, powered by a corrosion proof, coated drive. Ideal for food, chemical & pharmaceutical applications.

Explosion-Proof & Waterproof

No sparks or heat are generated by the pneumatic drive system. Totally sealed allowing vibratory feeders a safe wash-down.

Quiet & Energy-Efficient

Drive system operates at less than 65 dBA. Uses 0.18 – 3.14 cfm.

Exact Adjustment

Speed and stroke are independently adjusted, providing exact control.

3-Year Guarantee

Drive unit is covered by a full 3-year guarantee.

On-Site Feeder Testing

Call 1-800-474-4538 to test the E-Z™ Feeder System at your location.


E-Z™ Vibratory Feeder Spec Sheet Download

Gallery


See the E-Z™ Vibratory Feeders in action!

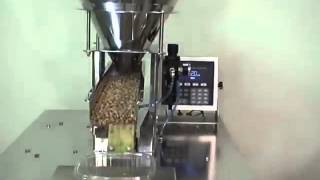

Flat Tray Dispensing Beans

With the MARTIN® E-Z™ Vibratory Feeder, dispensing products is fast, easy and accurate. Constructed from stainless steel, the equipment is sanitary and easy to clean, which makes it perfect for food production, chemical, and pharmaceutical applications. Available in standard flat or V-shaped tray. Custom trays also available.

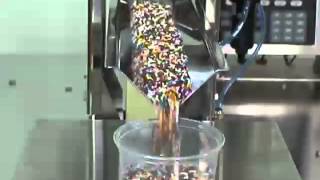

V-Shaped Tray Dispensing Candy Sprinkles

The MARTIN® E-Z™ Vibratory Feeder is the ideal solution for food production, as well as chemical and pharmaceutical applications. Fabricated from stainless steel, the equipment is easy to clean and dispenses products quickly and accurately. Flat, V-shaped, and custom trays are available.
