Available in Stainless Steel

Lubrication-free. Quiet. Energy-efficient.

MARTIN® NTS™ 80-350 Non-Impacting Linear Vibrators provide powerful force to move materials in small bins and hoppers. The ability to control both the frequency and amplitude independently makes the MARTIN® NTS™ Industrial Vibrator a great choice for small feeder drives. Lubrication-free. Ideal for food, pharmaceutical and chemical applications. All Units are explosion-proof and wash-down safe. NTS 120, NTS 180, NTS 250 and NTS 350 body sizes are available in normal and high-frequency models.

ATEX-Certified.

All units are now available in stainless steel.

NEW miniature unit now available.

Available with a Revolutionary Mounting Option
You can pair select models of this product with our incredible adhesive mounting system that makes mounting a breeze. No welding, no drilling, no bolting, no intrusion and no downtime!
NTS PERFORMANCE DATA
WORKING MOMENT IN-LB. (CM-KG) FREQUENCY FORCE LBS. (N) AIR CONSUMPTION CFM (L/MIN)
30 PSI (2 BAR) 60 PSI (4.1 BAR) 30 PSI (2 BAR) 60 PSI (4.1 BAR) 30 PSI (2 BAR) 60 PSI (4.1 BAR) 30 PSI (2 BAR) 60 PSI (4.1 BAR)
NTS 80 0.006(.008) 0.006(.008) 6600 9420 4.27(19) 9.44(42) 0.71(20) 1.15(32.5)
NTS 120HF 0.01(.018) 0.01(.018) 6280 7920 9(40) 14(63) .35(10) .81(36)
NTS 120NF 0.02(.038) 0.03(.046) 3871 4510 7(32) 12(52) .25(7) .46(19)
NTS 180HF 0.03(.035) 0.03(.045) 5520 6880 13(59) 26(116) .53(15) 1.44(67)
NTS 180NF 0.09(.138) 0.13(.149) 3000 4160 15(68) 32(141) .49(14) 1.25(57)
NTS 250HF 0.13(.152) 0.17(.190) 3654 4756 25(111) 53(235) .74(21) 2.23(105)
NTS 250NF 0.31(.402) 0.46(.475) 2328 3100 27(119) 56(251) .71(20) 2.11(99)
NTS 350HF 0.22(.208) 0.3(.308) 3866 4754 40(179) 90(399) 1.31(37) 3.04(135)
NTS 350NF 0.52(.756) 0.75(.932) 2412 3077 54(241) 109(486) .92(26) 2.4(110)

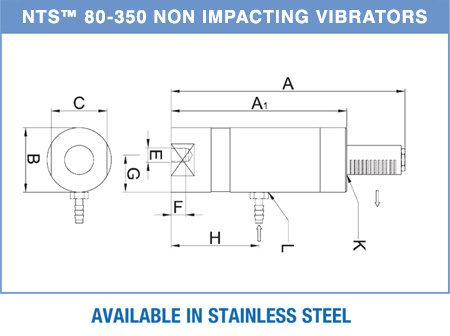

NTS DIMENSIONS
A A1 B C E F G H K L
NTS 80 2.05(52) 2.05(52) 0.75(19) 0.63(16) M 5 0.22(5.5) 0.374 1.02(26) M5 M5
NTS 120 HF 3.84(97.5) 2.76(70) 1.08(27.5) SW21 M 8 0.43(11) 0.65(16.5) 1.36(34.5) 1/8" 1/8"
NTS 120 NF 4.92(125) 3.84(97.5) 1.08(27.5) SW21 M 8 0.43(11) 0.65(16.5) 1.91(48.5) 1/8" 1/8"
NTS 180 HF 4.27(108) 2.87(73) 1.32(33.5) SW27 M 10 0.39(10) 0.77(19.5) 1.4(35.5) 1/4" 1/8"
NTS 180 NF 5.77(146) 4.35(110) 1.32(33.5) SW27 M 10 0.39(10) 0.77(19.5) 2.12(53.8) 1/4" 1/8"
NTS 250 HF 5.73(145) 3.86(98) 1.64(41.5) SW36 M 12 0.47(12) 0.94(24) 1.93(49) 3/8" 1/8"
NTS 250 NF 7.48(190) 5.55(141) 1.64(41.5) SW36 M 12 0.47(12) 0.94(24) 2.78(70.5) 3/8" 1/8"
NTS 350 HF 5.77(146) 3.9(99) 2.09(53) SW46 M 12 0.47(12) 1.2(30.5) 1.95(49.5) 3/8" 1/4"
NTS 350 NF 7.6(193) 5.71(145) 2.09(53) SW46 M 12 0.47(12) 1.2(30.5) 2.85(72.5) 3/8" 1/4"
inches(mm)

Features

No Lubrication Required*

MARTIN® NTS™ Linear Vibrators are lubrication-free, eliminating the use of messy, maintenance-intensive lubricators. No oil mist is discharged into the atmosphere. *Lubrication is required when air is dried by refrigerant method.

Quiet

Noise levels are 60 to 65 dBA, well below regulatory limits.

Energy-Efficient

The most energy-efficient pneumatic vibrators available. Instant-on, instant- off. Frequency and amplitude adjust independently.

Sanitary Design

Special coating system sheds material buildup, won’t flake off.

Durable

Perfect for high wash down areas.


Additional Specifications

  • Air pressure range: 30-60 psi
  • Operating temperature: 32°-250°F
  • Air Preparation: 5-micron filter, pressure regulator & 3-way control valve.
  • Force (maximum): 101 force-lbs.
  • Warranty: 3-years when operated within recommendations.
  • Included: Muffler, nipple & fasteners.

NTS™ 80-350 Non-Impacting Linear Vibrator Spec Sheet Download

Gallery


See the MARTIN® NTS™ 80-350 Non-Impacting Linear Vibrators in action!

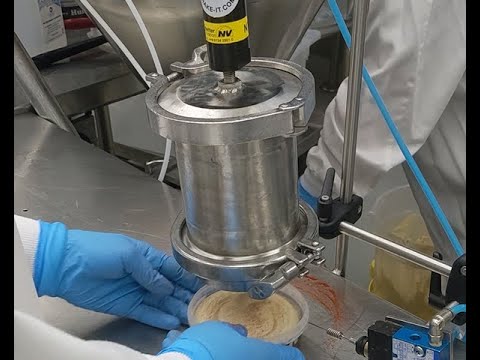

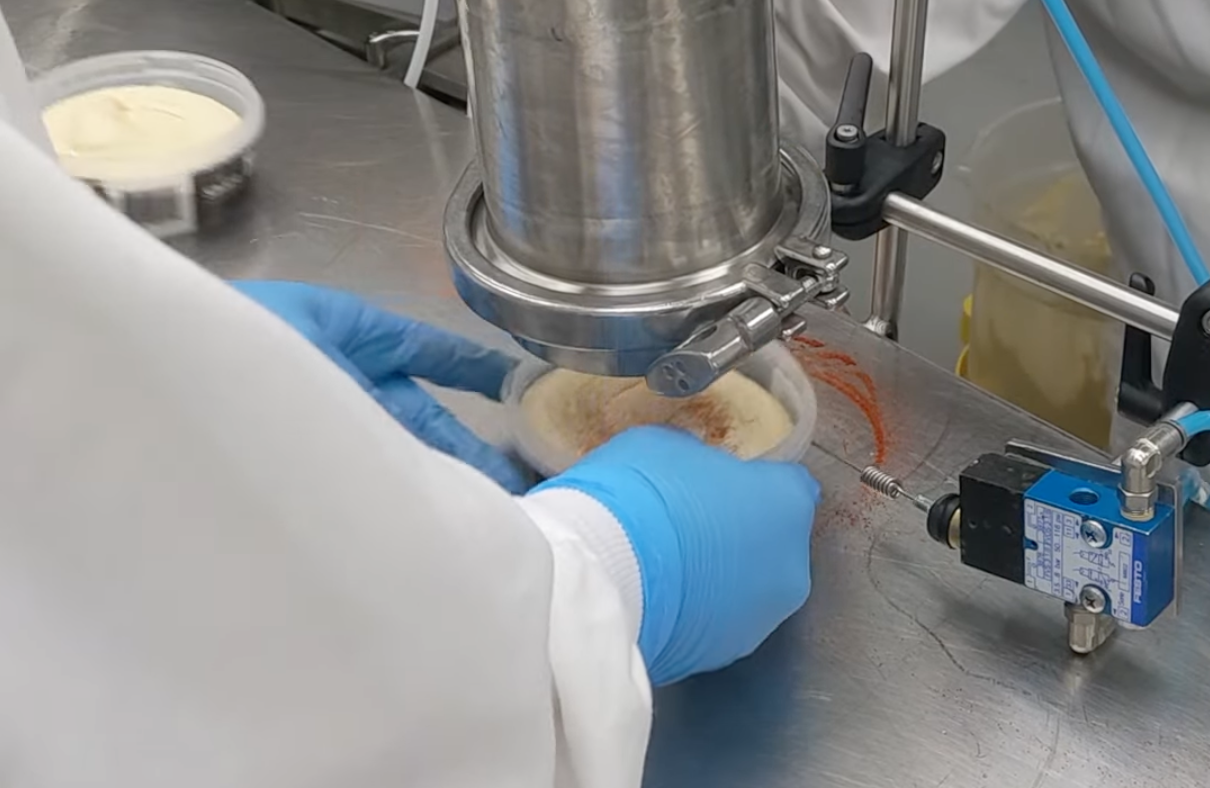

Automating Food Processing

The addition of vibration allows the paprika in this hummus production process to be fluidized and spread consistently and evenly while maintaining the line flow.
