Tired of scooping or hand filling?

Concerned about repetitive motion injuries? Want to increase your number of containers per hour?

If so, the MARTIN® E-Z™ Auto Scoop Filling System is for you! Place your container on the scale and step on the foot switch. In seconds, your product will be dispensed fast and accurate.

Custom Hopper/Feeder Sizes & Configurations Available


Dimensions Spec Sheet

Features

Developed Specifically For Short Runs

Gourmet food manufacturers, re-packers, coffee and spice sellers, chemical packagers and other packing professionals will find that E-Z Auto Scoop Filling System meets the needs for capacities up to 750 fills per hour.

Cleaning Is A Snap

The live storage hoppers (capacities from .9 – 4.1 cu.ft.) lift off with no fasteners to remove. The entire assembly is fabricated from electro-polished 304 SS.

Reliable, Easy To Operate Controls

Change the target weight in seconds. No proprietary software. Worldwide service network.


Gallery


See the MARTIN® E-Z™ Auto Scoop Filling System in action!

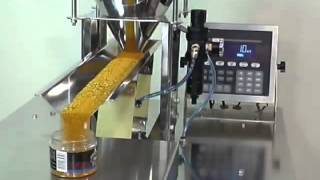

Dispensing Spices with the MARTIN® E-Z™ Auto Scoop Filling System

The MARTIN® E-Z™ Auto Scoop Filling System eliminates the need for scooping and filling containers by hand, which can cause repetitive-motion injuries. Fills containers to precise target weight automatically. Reduces spillage.

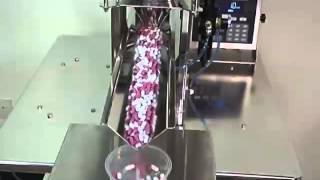

Dispensing Candy with the MARTIN® E-Z™ Auto Scoop Filling System

Eliminate hand scooping and filling of containers with the MARTIN® E-Z™ Auto Scoop Filling System. Automatically fills precisely to desired target weight, which is easy and fast to change as needed. Stainless steel construction is easy to clean.

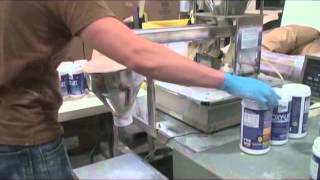

Quicker Filling & Less Spillage

See how this customer increased their packaging rate from one package per minute to six, using the MARTIN® E-Z™ Auto Scoop Filling System. Also eliminates repetitive-motion injuries caused by hand scooping and filling. Ideal for a wide range of products, such as chemical, food, pharmaceuticals, and more!


Dimensions

E-Z Fill Station Dimensions
Air Consumption CFM (L/MIN)
A B C D E* 30PSI (2BAR) 60PSI (4.1BAR)
30(762) 36(914) 36(914) 43(1092) 71(1803) .49(14) 1.25(57)
inches (mm) *sizes may vary depending on hopper or scale location (L/MIN)

Best uses and case studies for MARTIN® E-Z™ Auto Scoop Filling System

  • MARTIN® E-Z™ Auto Scoop Filling System Reduces Labor Costs & Increases Production
    Situation

    A leading Midwest supplier of aeration technologies and natural treatments to maintain ponds and lakes had a need to reduce labor cost and increase production on the containers they were filling. Currently they were using five people for months at a time during the busy season, filling buckets by hand with a simple bench scale. Workers would scoop these products from 40-60 pound bulk containers and fill retail-size containers, typically taking about 1-2 Minutes per depending on size.

    Solution

    The MARTIN® E-Z™ Auto Scoop Filling System incorporates a precision digital scale with programmable logic and a high-performance vibratory feed system that assures fast and consistent flow of material. The system was developed for small to medium-sized packagers, but has proven capable of 750 fills per hour (depending on the material and package size), an average of more than a dozen per minute.

    MVSS supplies both loss-in-weight feeders and volumetric feed/weigh systems. Customers find benefit in the company’s worldwide network of parts and service, and from the use of industry-standard components and non-proprietary software.

  • Labor Costs Reduced By 50%

    A chemical supplier was experiencing high labor costs when filling containers by hand. The operator positioned 1 & 1.5-pound containers on a scale and scooped material into the containers, by hand, until the weight was reached.

    A special MARTIN® E-Z™ Weigh System was developed. The operator now places the containers on the scale and pushes a foot switch. The scale logic tares the scale to zero and then activates the MARTIN® E-Z™ Feeder. When the scale is satisfied the feeder is stopped and the operator removes the filled container. Labor costs were reduced by 50%, spillage is greatly reduced as is the overfill of the containers.

  • MARTIN® E-Z™ Auto Scoop Filling System Streamlines Bagging of Flour from Bulk Hopper
    Situation

    A client’s packaging operation involves transferring flour from a bulk storage hopper into individual retail bags. The process demands precise flow control to ensure each bag is filled accurately without spillage, dust, or product loss.

    Problem

    Manual or uncontrolled flow from the bulk hopper often led to overfills, underfills, and dust generation. Operators had to constantly monitor and adjust the flow, slowing the packaging line and increasing waste. Additionally, cleanliness and consistency were critical due to food safety requirements.

    Solution

    On advice from the application experts at Martin Vibration Systems & Solutions, the client integrated a MARTIN® E-Z™ Auto Scoop Filling System to provide a controlled, metered feed of flour directly into each bag. The system’s compact footprint fit easily into their existing line, and its gentle vibration provided a smooth, even flow of fine flour without compacting or clumping the material.

    With the E-Z™ Auto Scoop in place, the client achieved these positive results:

    • Accurate fill control
    • Improved sanitation
    • Dust-free operation
    • Increased throughput
