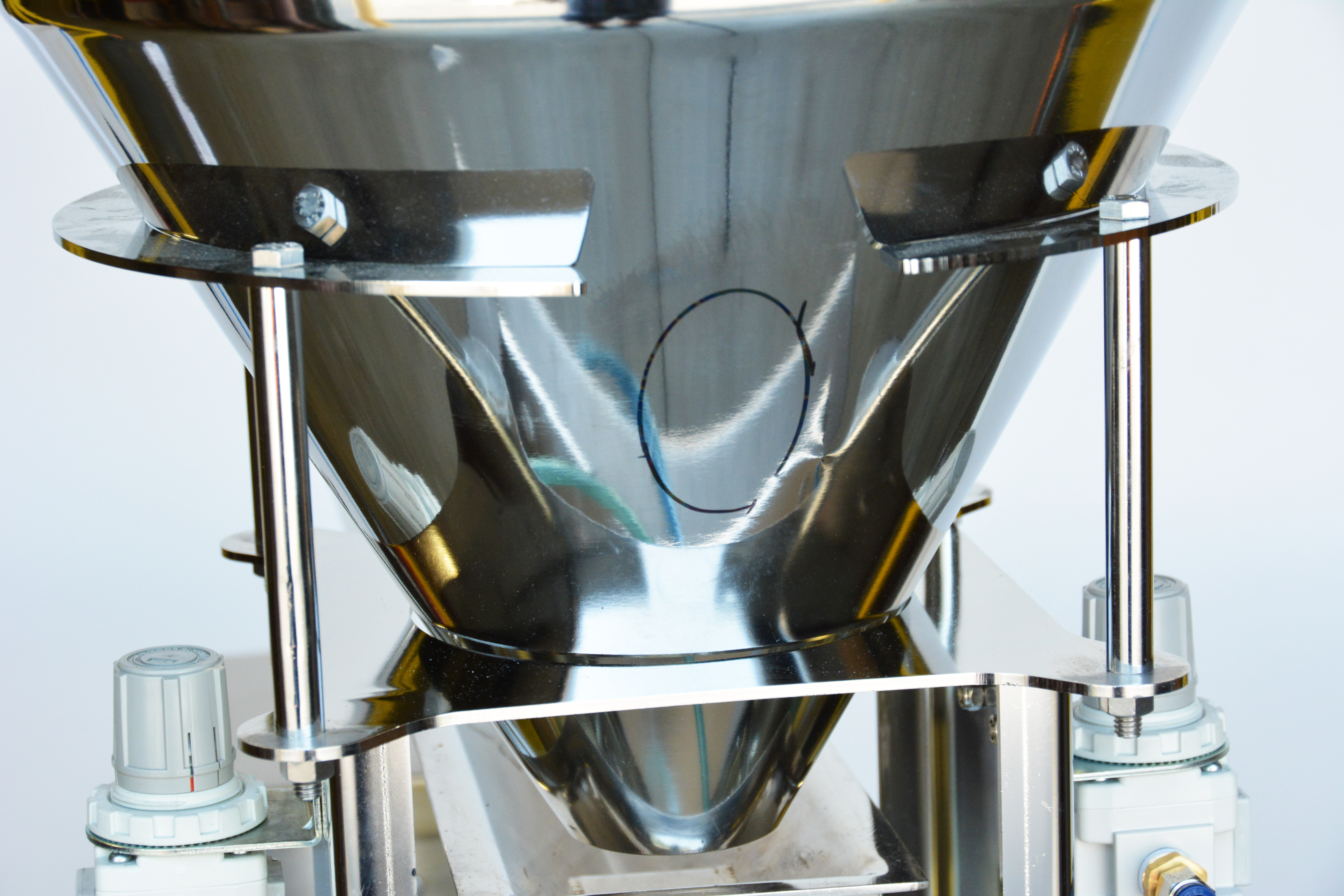

The MARTIN® Stick & Shake™ Adhesive Mounting System is the new, revolutionary solution for mounting industrial vibrators on bins, hoppers and chutes. With the two-component adhesive, the stainless-steel mount can be installed virtually anywhere, on nearly every material, quickly and easily. It simplifies mounting vibrators on hoppers and bins with dimensions less than 24”. No welding. No down time.

Stick & Shake™ mounts can be applied to bare or painted metals, poly-carbonate, acrylics, and ABS plastics. They are ideal for pharma, cosmetic and plastic applications and will solve a wide variety of material flow problems in food processing applications as well. This new mounting system was purpose-built to be used with one of the new MARTIN® Bantam™ Series pneumatic vibrators, and ensures an efficient transfer of vibration to free stubborn material.

Industry-First Miniature Vibrator and Easy-Mount Combination
Learn more about how this unique combination is the solution for your small hopper and bin material flow issues and the beginning of more productivity and higher profits.

Dimensions Stick & Shake™ Adhesive Mounting System Manual

Gallery

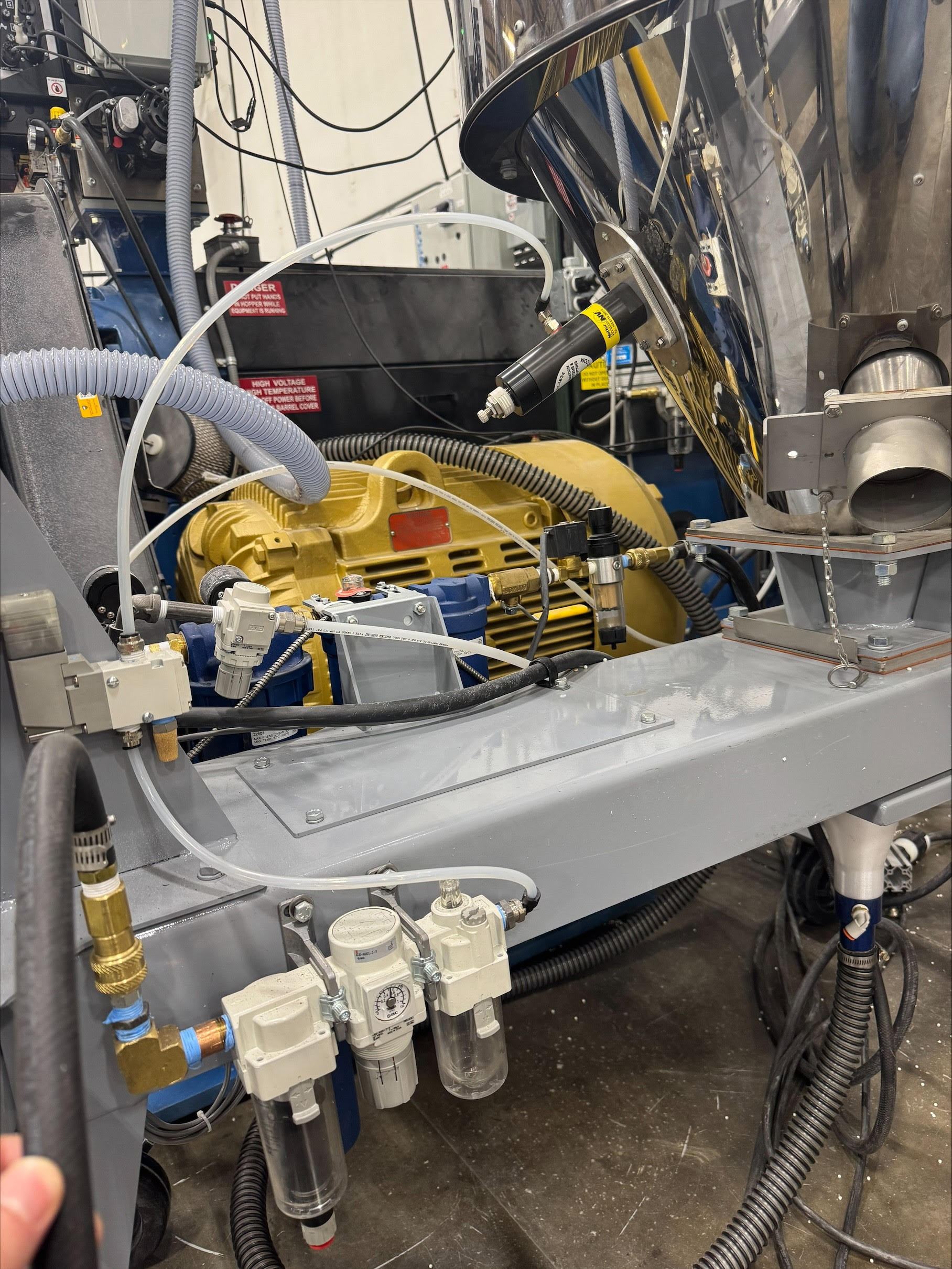

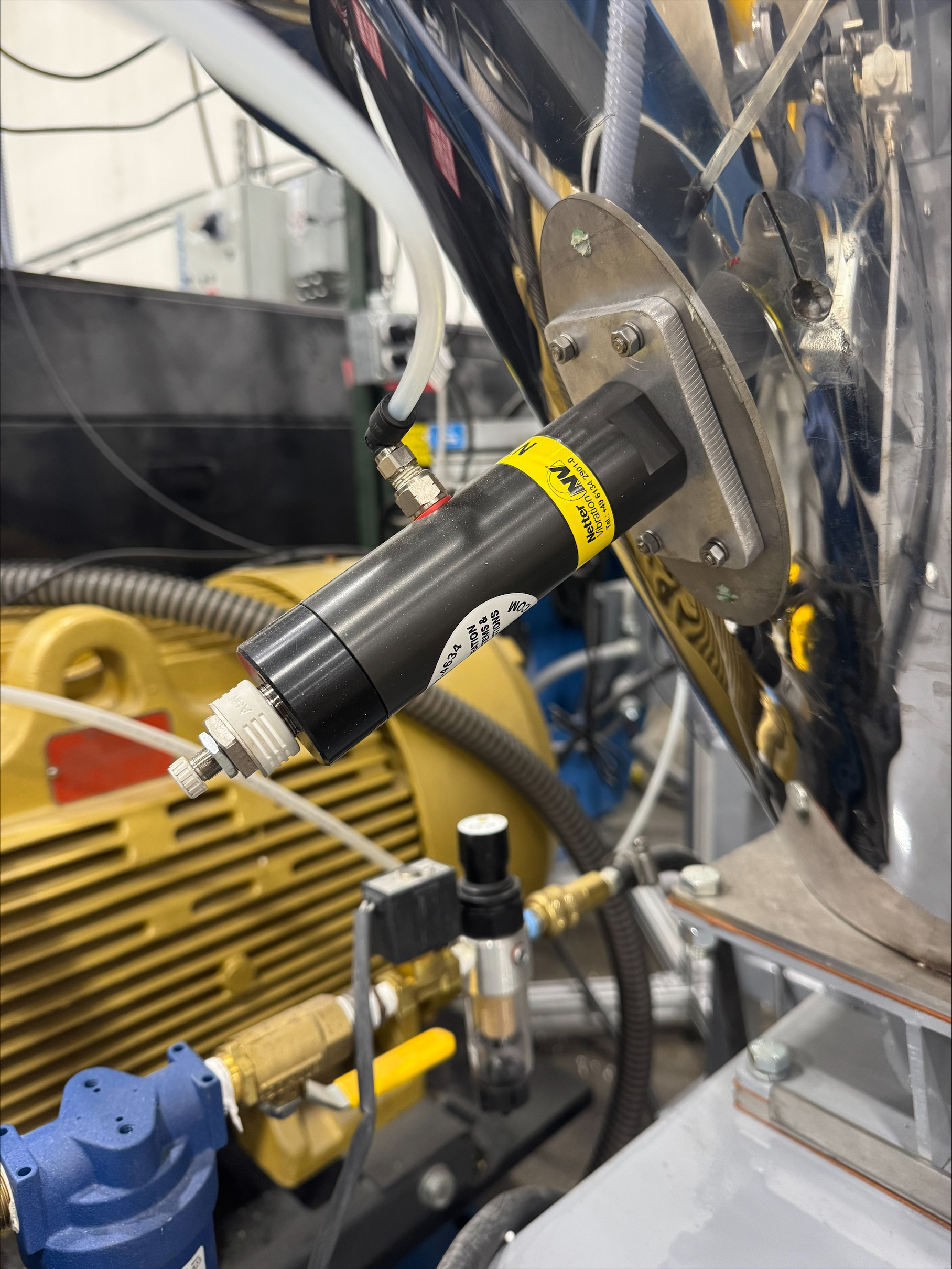

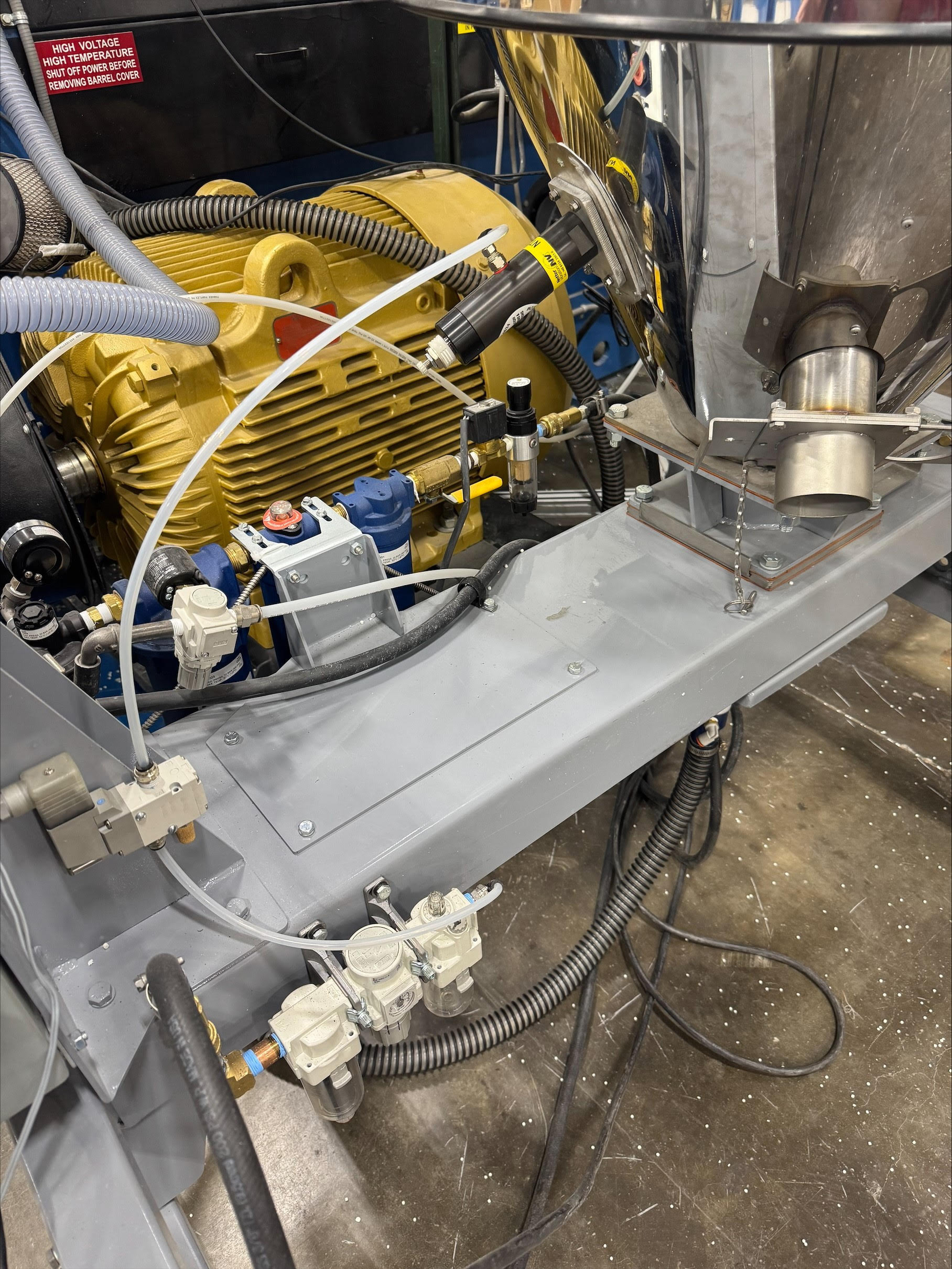

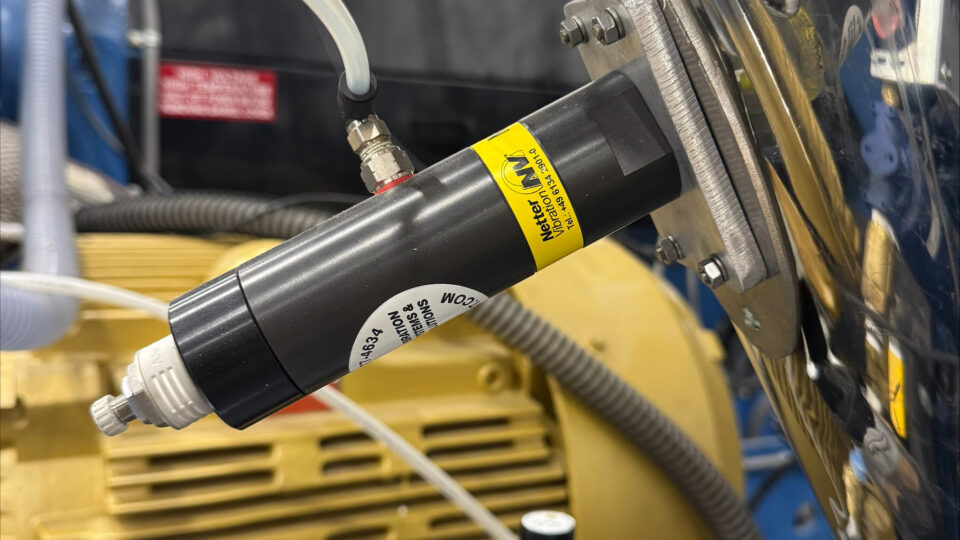

See the MARTIN® Stick & Shake™ Adhesive Mounting System in action!

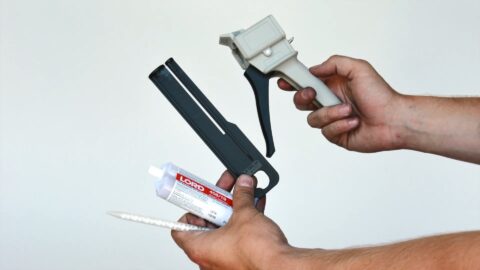

MARTIN® Stick & Shake™ Installation

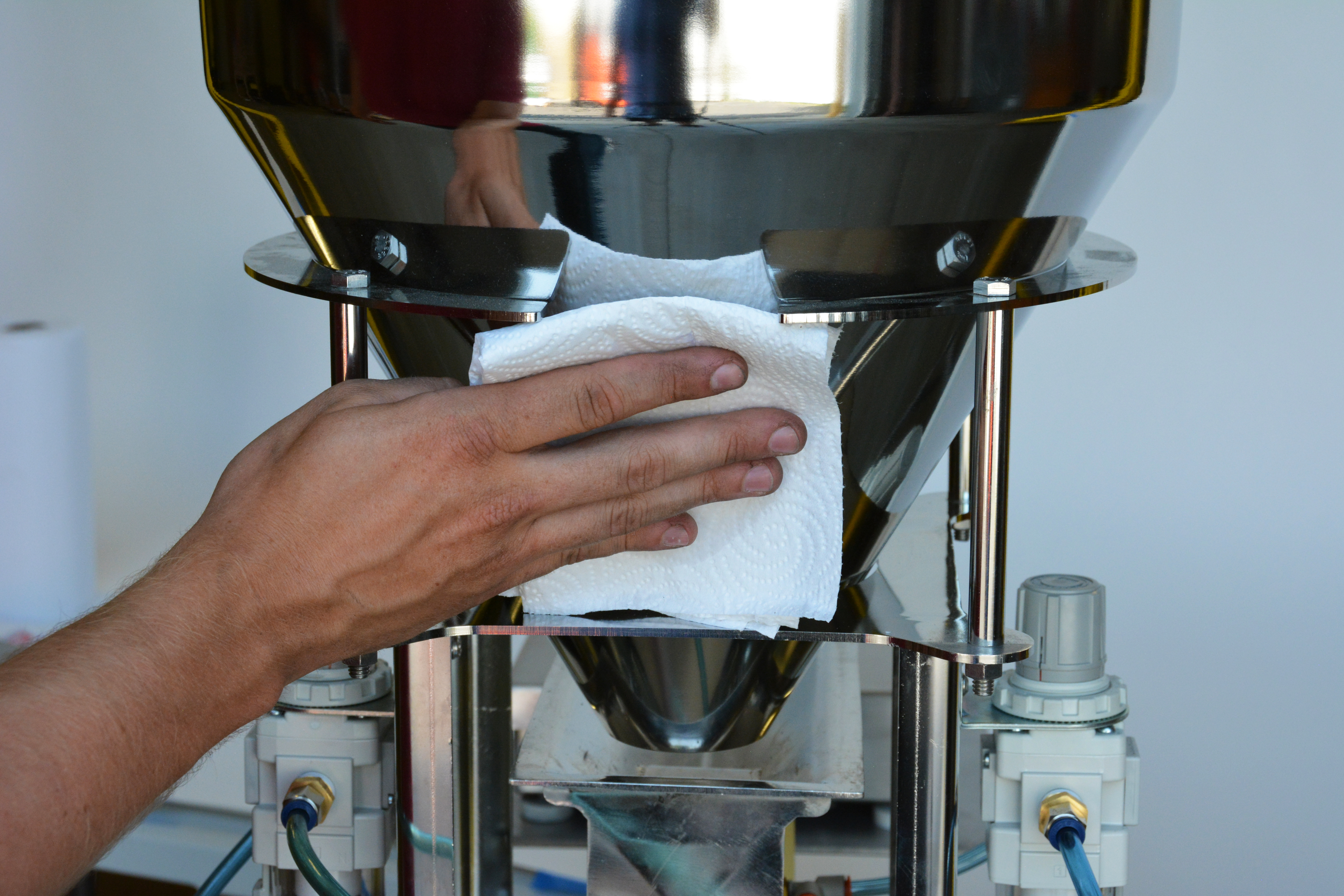

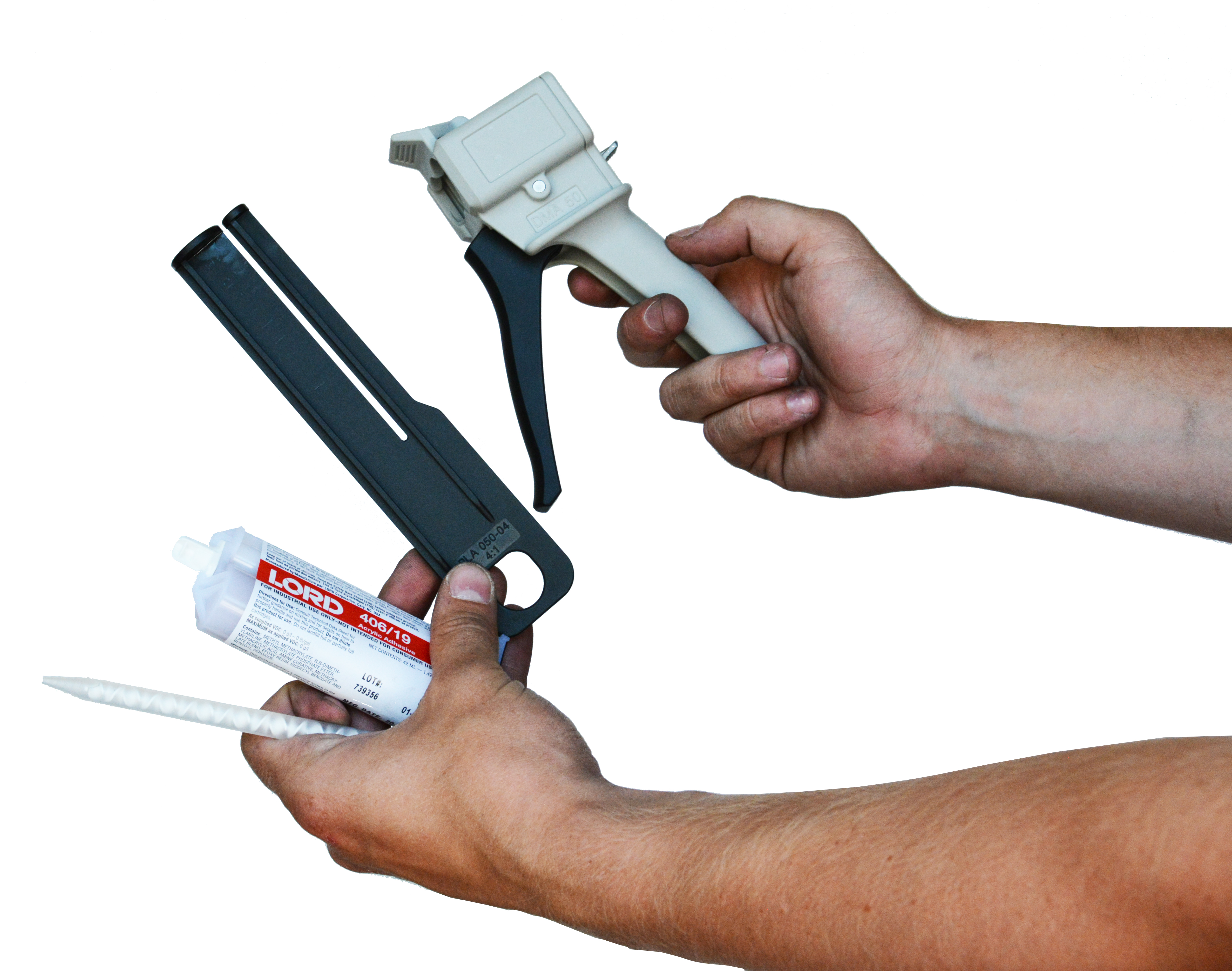

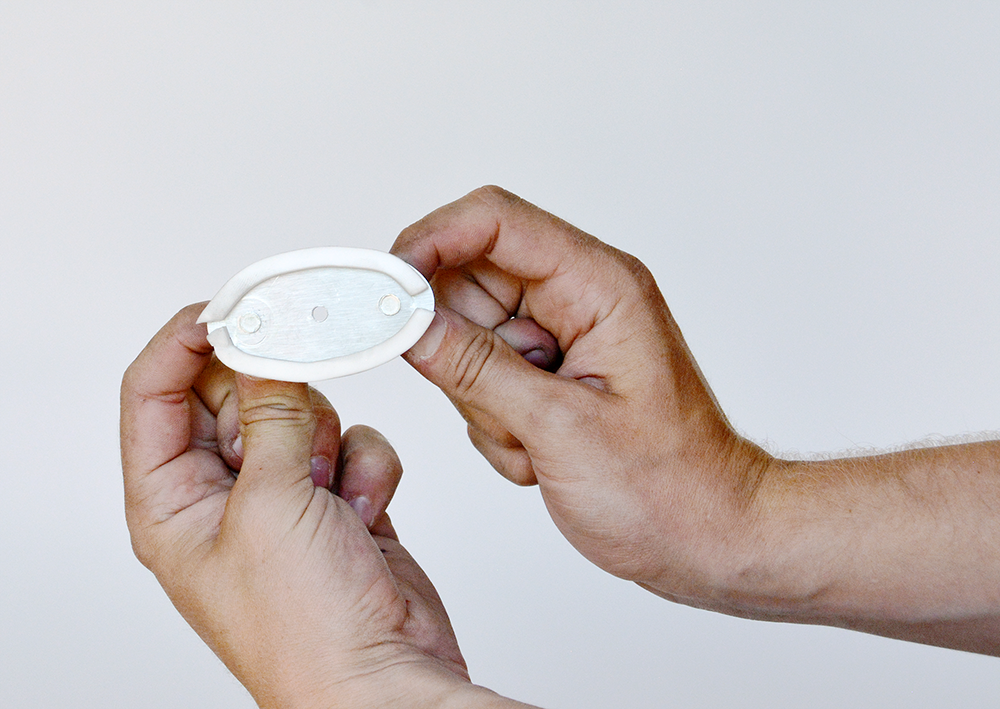

See how easy it is to install the MARTIN® Stick & Shake™ Mounting System. In 20 minutes or less, you'll have a secure mounting solution without any welding or mechanical expertise required.


Dimensions

Application Chart
NTS NTP PKL NTK Micro (NEA/NEG) Manual Control
Pack P/N
Electric Control
Pack P/N
GM-10 80 18 - 8AL HA - 56006 56007
GM-50 120, 180 - - - -
GM-100 - 25 190 - 504
GM-200 50/01, 75/01 32 450 - -
GM-300 - - - - 5020, 5050 - -

Best uses and case studies for MARTIN® Stick & Shake™ Adhesive Mounting System

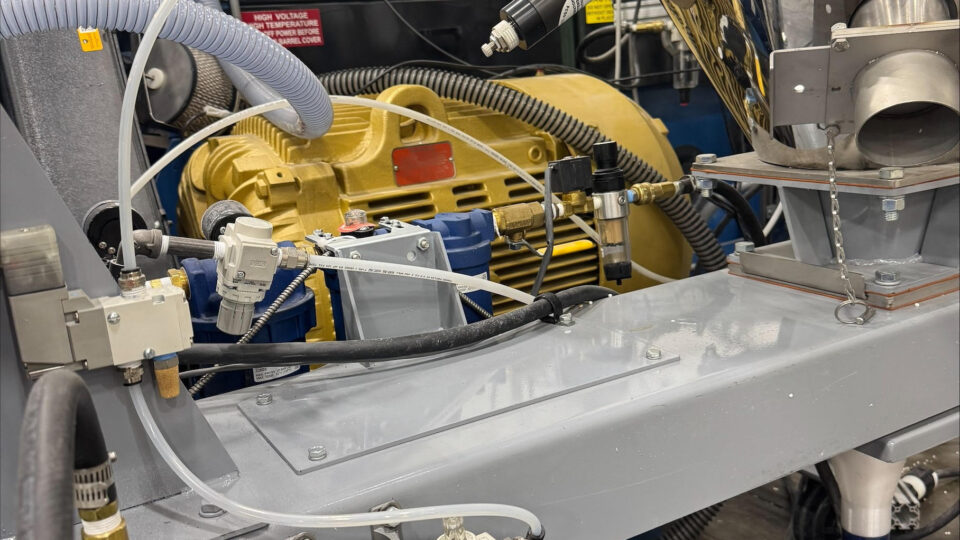

  • MARTIN® Stick & Shake™ with NTP™ 18 Clears Bridging in Powder Hopper Without Welding
    Situation

    A client’s operation involves discharging fine powders from hoppers, a process often disrupted by material bridging. However, modifying the hopper structure with welding or drilling was not an option due to equipment warranties and sanitary requirements.

    Problem

    Bridging at the hopper outlet caused repeated flow stoppages, requiring manual clearing with mallets or rods. This not only introduced safety risks for their operators but also slowed production and increased wear on the equipment.

    Solution

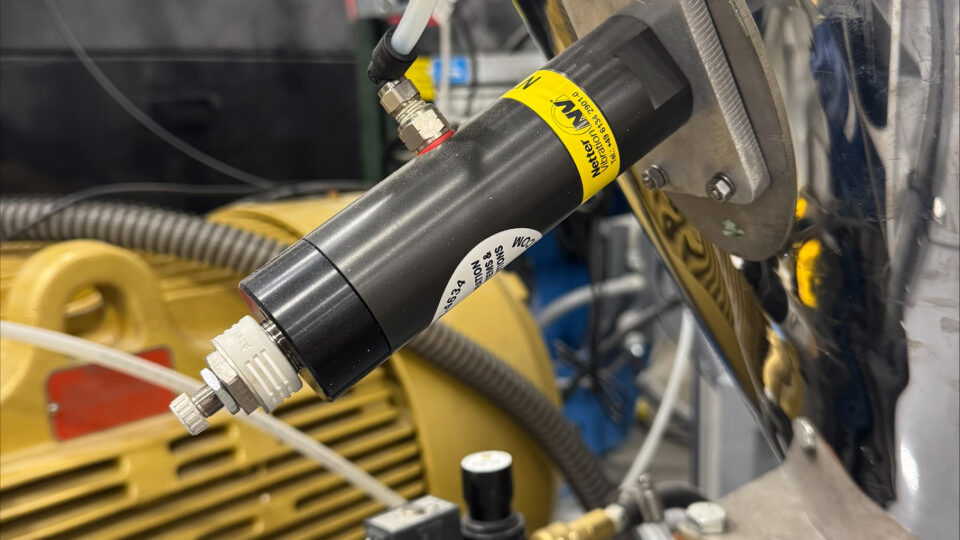

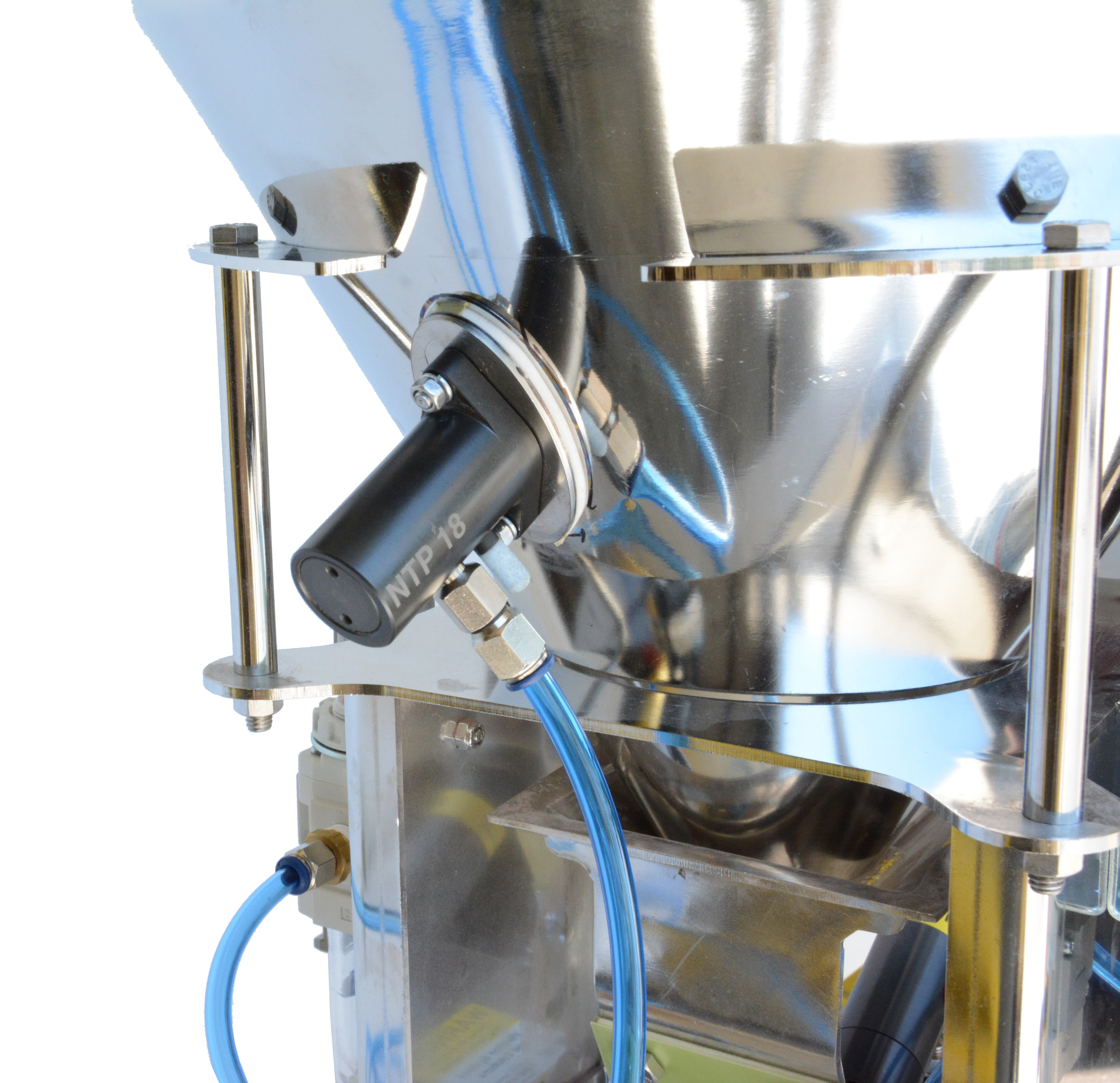

    The client applied the MARTIN® Stick & Shake™ Adhesive Mounting System to securely mount a vibrator without any permanent modifications required. Once the adhesive mounting plate was cured in place, they installed the MARTIN® NTP™ 18 Continuously Impacting Linear Vibrator. This model delivers powerful, repeated linear impacts — ideal for breaking up stubborn powder bridges in flow-resistant materials.
