Instant vibration! No welding! No downtime!

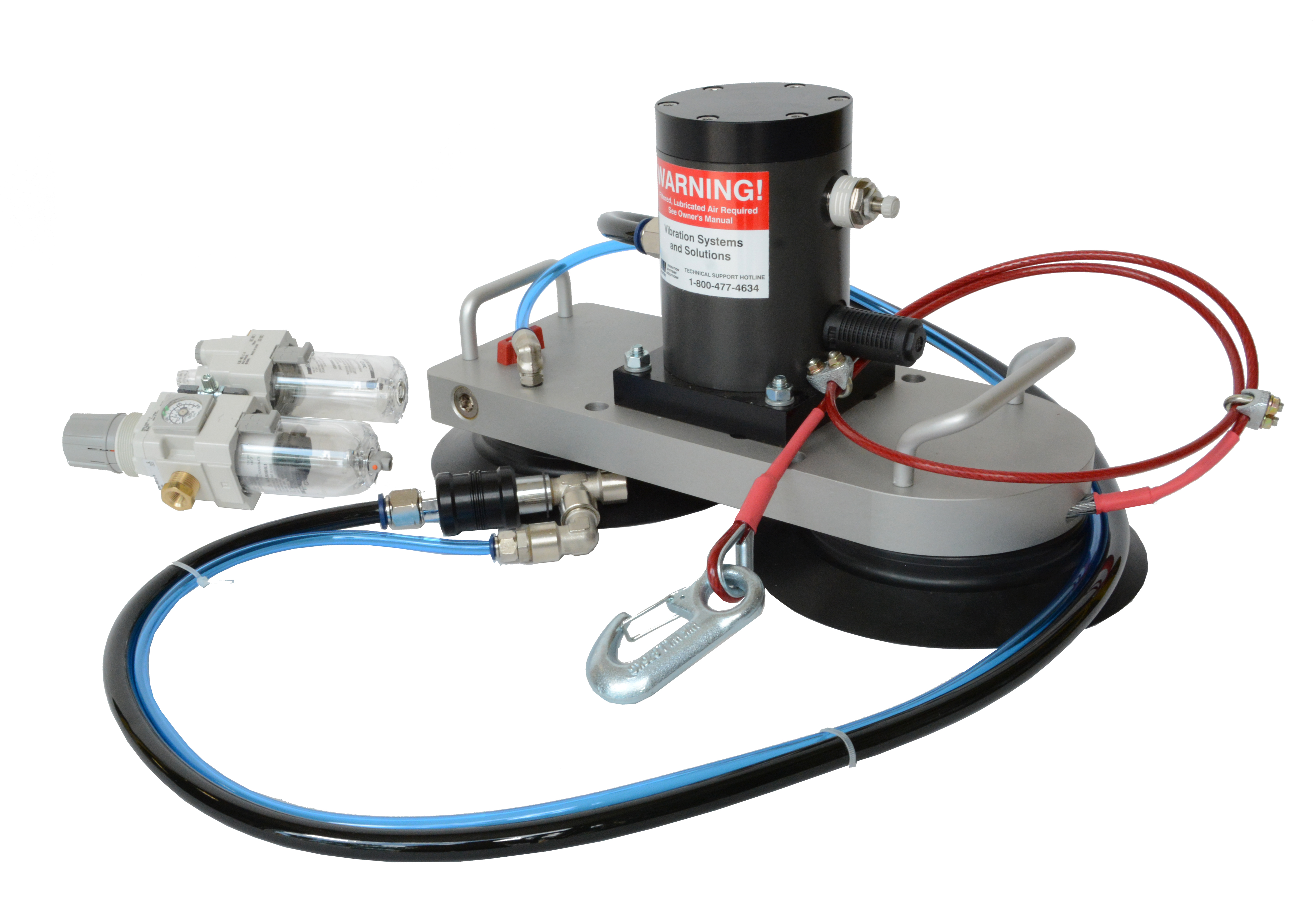

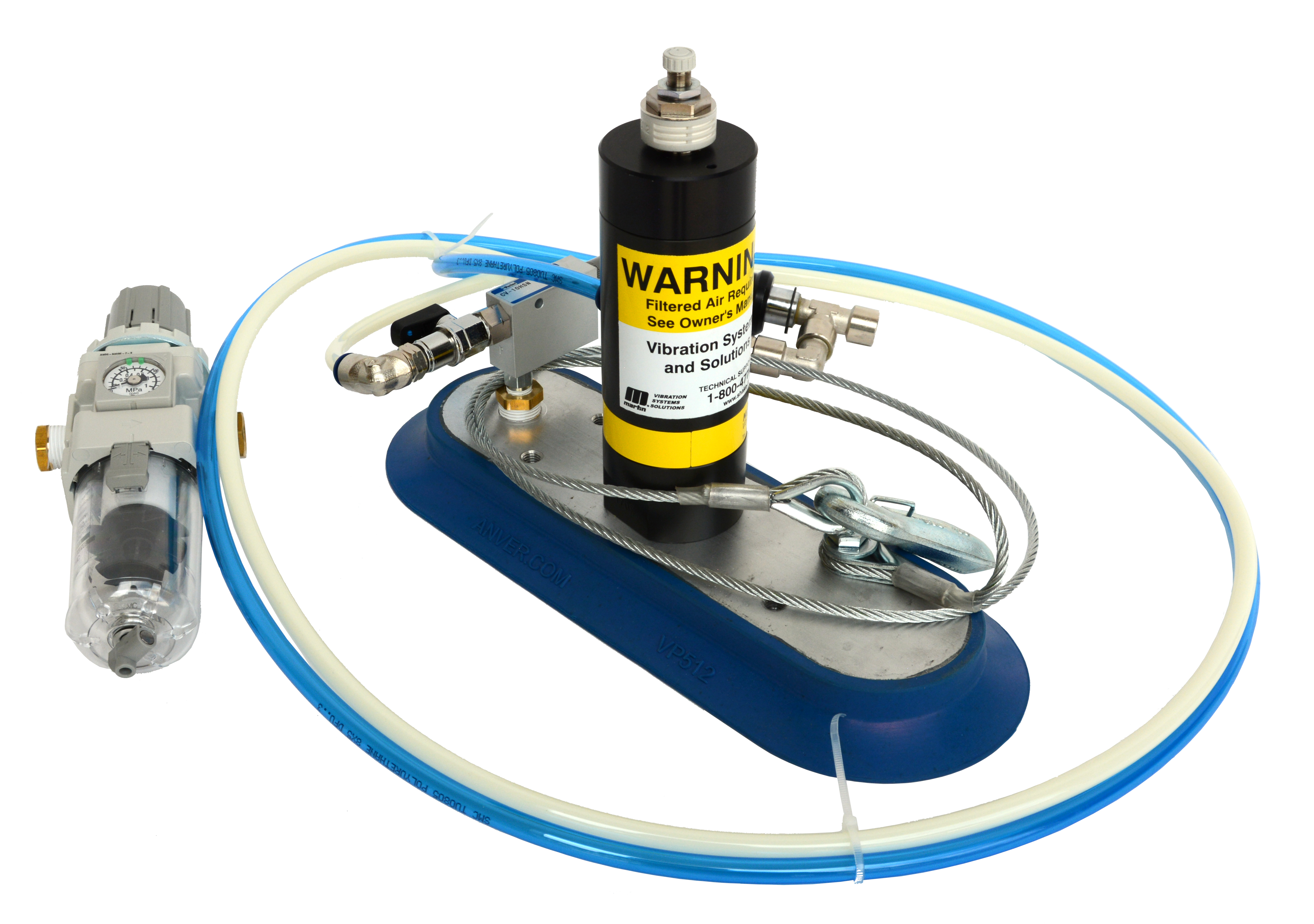

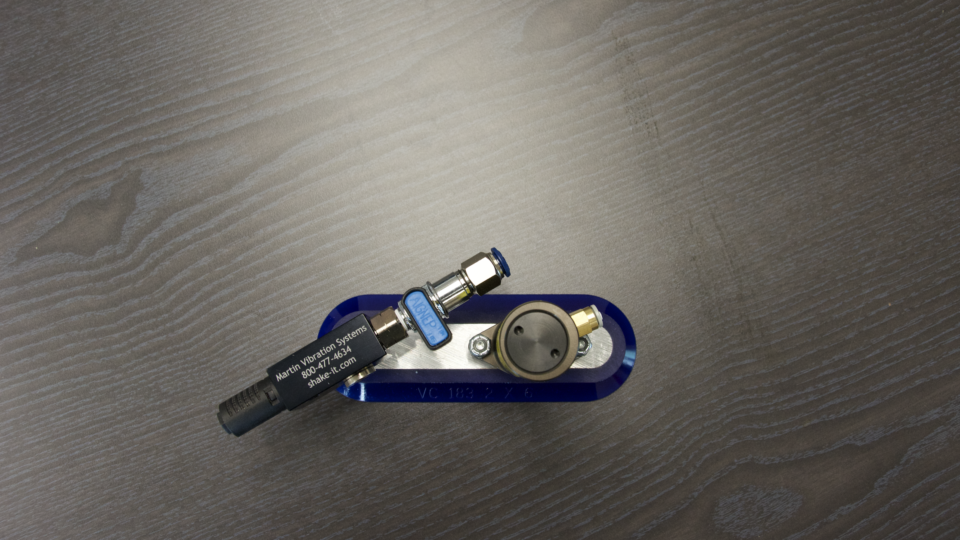

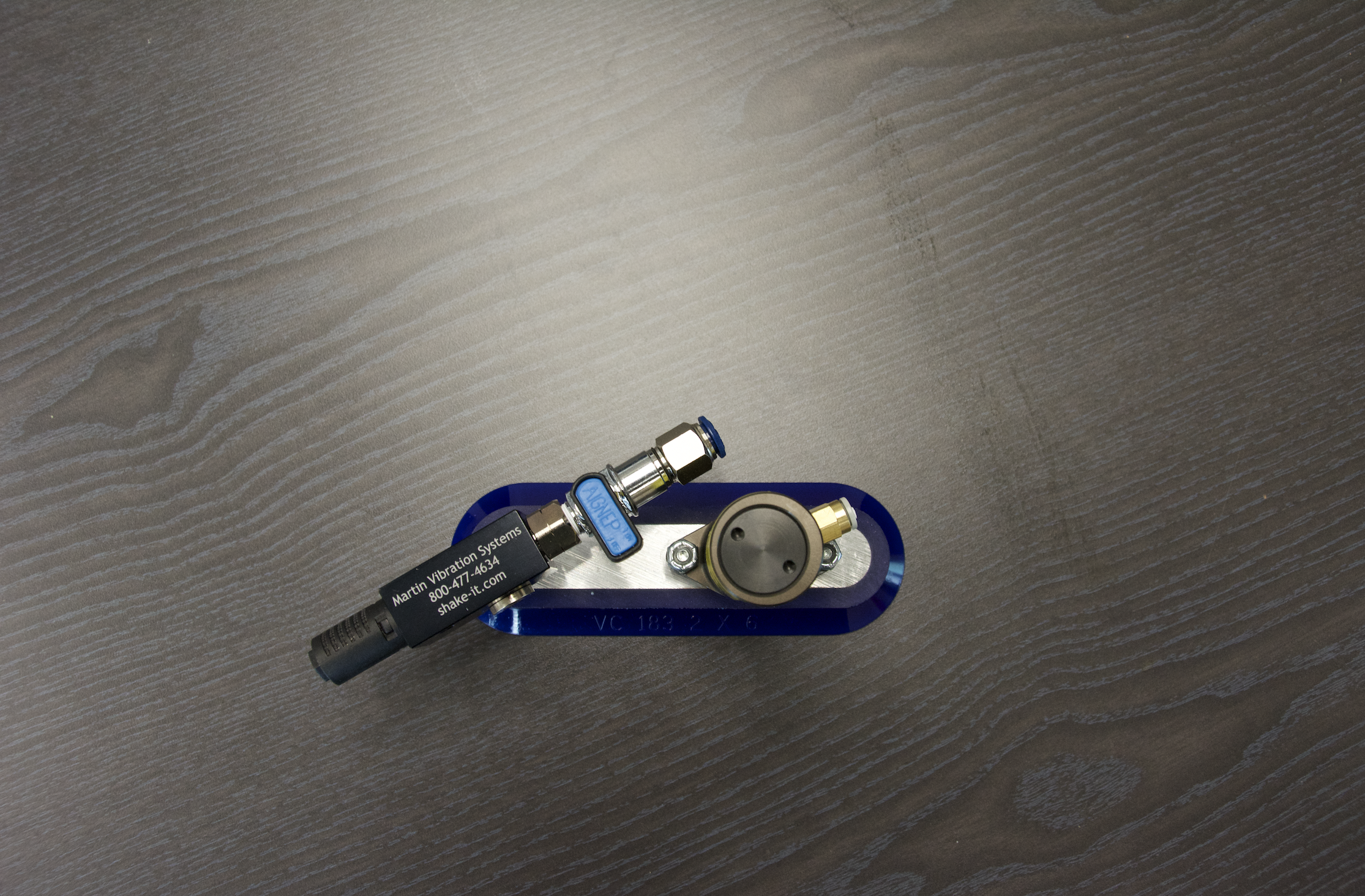

MARTIN® VAC-MOUNT™ Portable Vibrators are the answer for applications where ease of installation and/or maximum portability is required. The mounts are held in place by vacuum generated by a venturi system. Just place the unit against the vessel, turn the suction valve handle and you are ready to vibrate. This is the ideal solution for intermittent flow problems or for cleaning between batches. MARTIN®VAC-MOUNT™ Vibrators are the perfect tools for troubleshooting material-flow problems.

MARTIN® VAC-MOUNT™ Portable Vibrators are available in a variety of sizes including impacting, non-impacting and high-frequency models.

VAC-MOUNT PERFORMANCE DATA
MIN. REQUIRED MOUNTING SURFACE AREA WEIGHT AIR CONSUMPTION
FLAT SURFACE ROUND SURFACE LBS. (KG) CF (L/MIN)
NTS 120NF VAC 10 8" X 3" (203 x 76) 5" (127) 2(0.9) 3(85)
NTS 180NF VAC 10 8" X 3" (203 x 76) 5" (127) 2(0.9) 4.8(221)
NTS 250NF VAC 10 8" X 3" (203 x 76) 5" (127) 3(1.4) 5(142)
NTS 350NF VAC 12 12" X 5" (305 x 127) 14" (355.6) 7(3.2) 7(198)
NTS 50/01 VAC 15 14" X 6" (356 x 152) 27" (685.8) 18(8.2) 16(453)
NTS 54/02 VAC 20 18" X 8" (457 x 203) 35" (889) 24(10.9) 23(651)
NTS 50/04 VAC 20 18" X 8" (457 x 203) 35" (889) 35(15.9) 30(850)
NCT-4 VAC 10 8" X 3" (203 x 76) 5" (127) 2(0.9) 4.5(127)
NCT-10 VAC 12 12" X 5" (305 x 127) 14" (355.6) 6(2.7) 11(311)
NCT-29 VAC 15 14" X 6" (356 x 152) 27" (685.8) 9(4.1) 19(538)
NCT-108 VAC 20 18" X 8" (457 x 203) 35" (889) 19(8.6) 31(878)

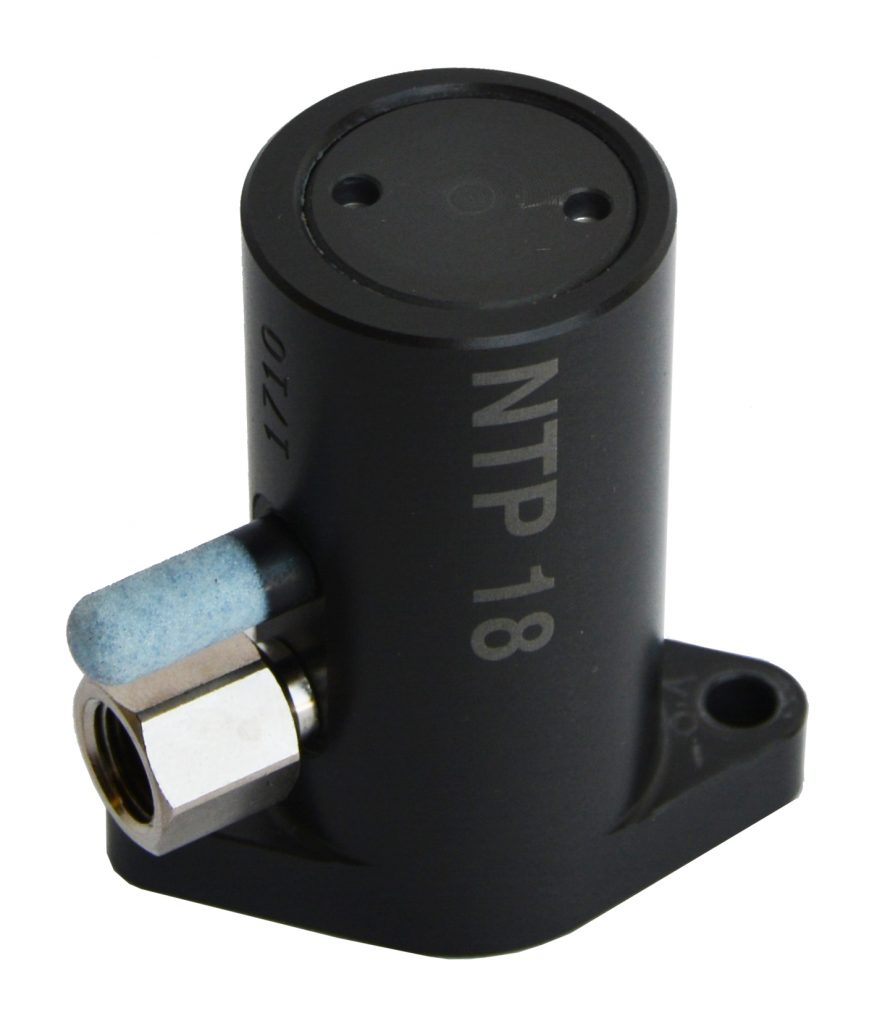

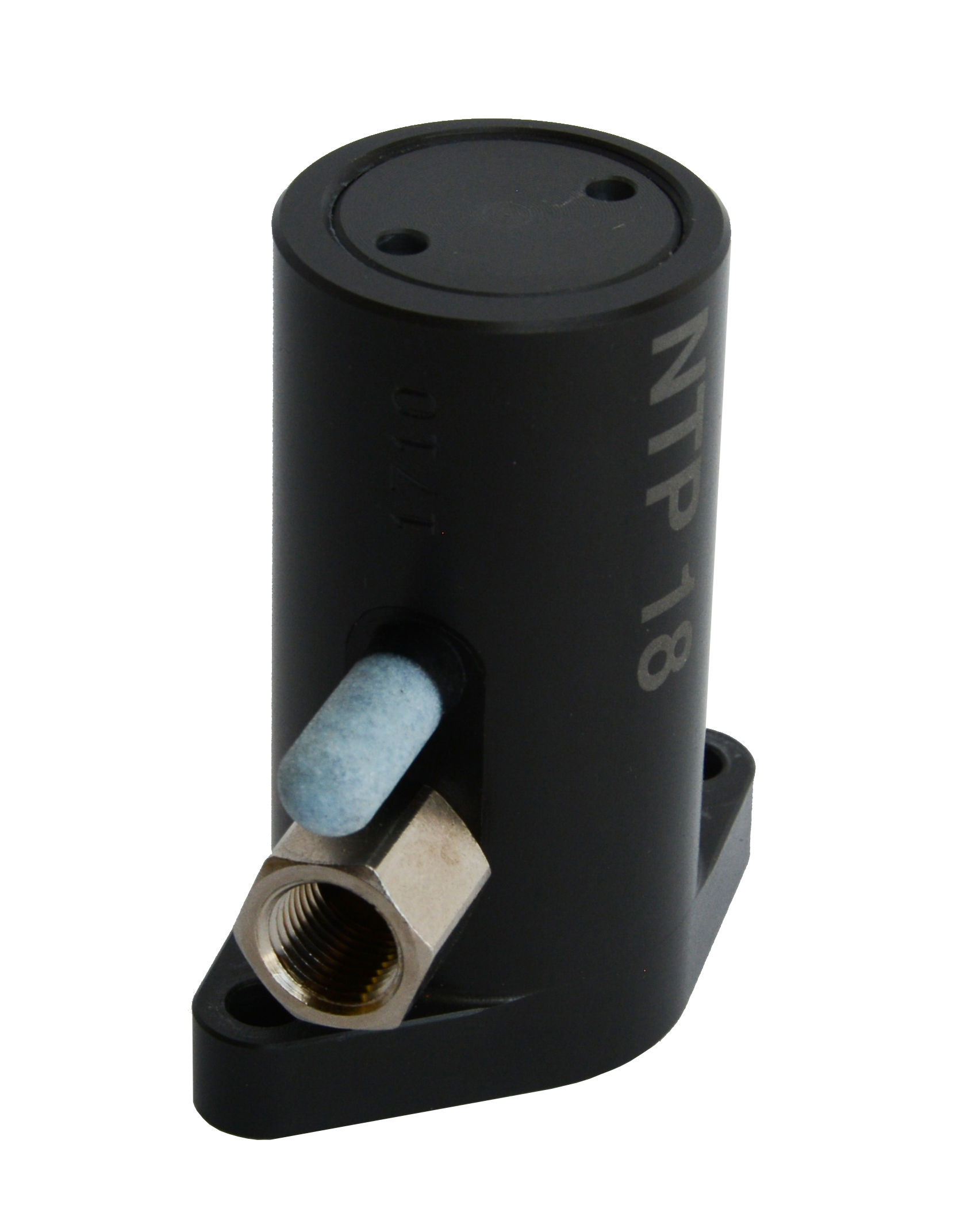

NTP-18 VAC 10 8" X 3" (203 x 76) 5" (127) 2(.9) 4.8(221)
NTP-25 VAC 10 8" X 3" (203 x 76) 5" (127) 3(1.4) 5.5(156)
PKL 450/6 VAC 12 12" X 5" (305 x 127) 14" (355.6) 7(3.2) 4.5(127)
PKL 740/6 VAC 15 14" X 6" (356 x 152) 27" (685.8) 14(6.4) 8.5(241)
PKL 2100/5 VAC 20 18" X 8" (457 x 203) 35" (889) 30(13.6) 13(368)
PKL 5000 VAC 20 18" X 8" (457 x 203) 35" (889) 50(22.7) 12.5(354)
inches(mm)

Click any model number to learn more about that product.


Features

Easy To Use

Lightweight units provide “one worker” portability. The largest, most powerful unit weighs less than 37 lbs. All the controls required to operate the vibrator and mount are included.

Eliminates Guesswork

The vacuum mount helps pinpoint the best position for the placement of permanent vibrator installations.

Vibrates Portable Hoppers

Locate MARTIN® VAC-MOUNT™ assemblies at unloading stations. Instant attachment and controlled vibration eliminates destructive and expensive hammering.

Removes Residue Quickly

Attach a unit between batches to quickly and efficiently remove residue, reducing product waste and labor.


Applications

Applications
  • Tote Bins
  • Batch Storage Containers
  • FIBC Loading & Unloading
  • Barrel Compaction
  • Tilt Tables
  • Bins & Hoppers
  • Rail Cars
  • Trucks
  • Chutes
  • Plastic Containers
  • Corrugated Paper Containers
  • Pipes
Use For
  • Unloading
  • Compaction
  • Cleaning
  • Testing
We Have Models For
  • Non-Impacting Linear: General purpose
  • Rotary Turbine: Fine, dry powders
  • Impacting: Cleaning storage vessels and moving sticky materials

VAC-MOUNT™ Portable Vibrator Spec Sheet Download

Gallery


See the MARTIN® VAC-MOUNT™ Portable Vibrators in action!

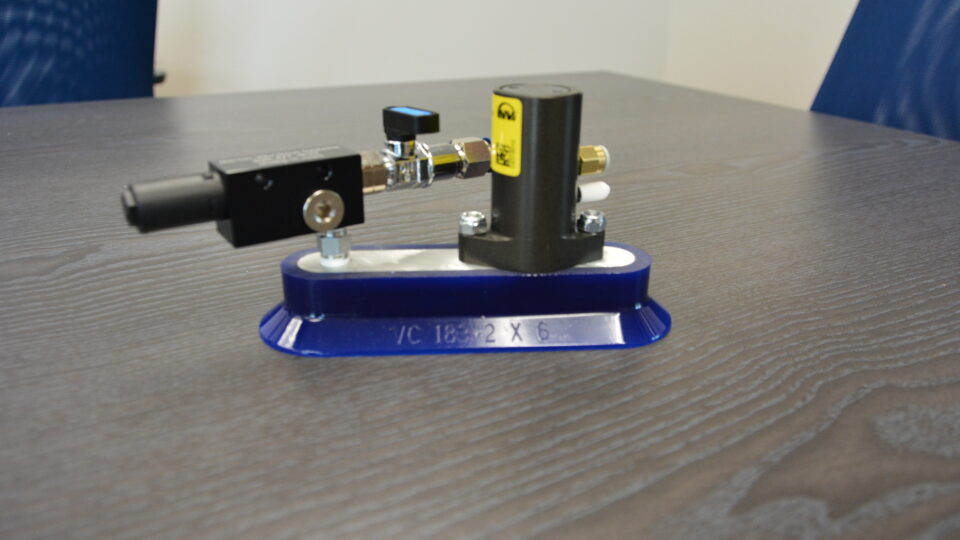

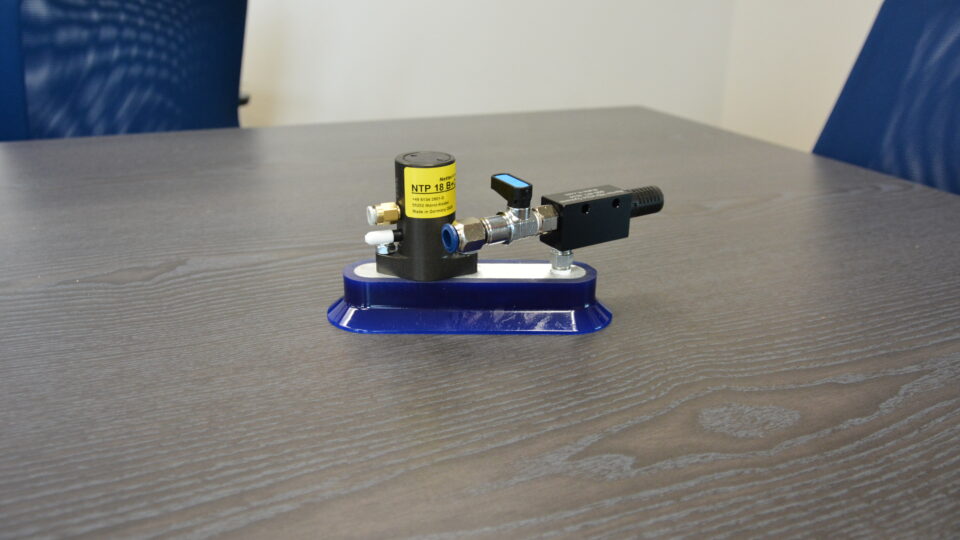

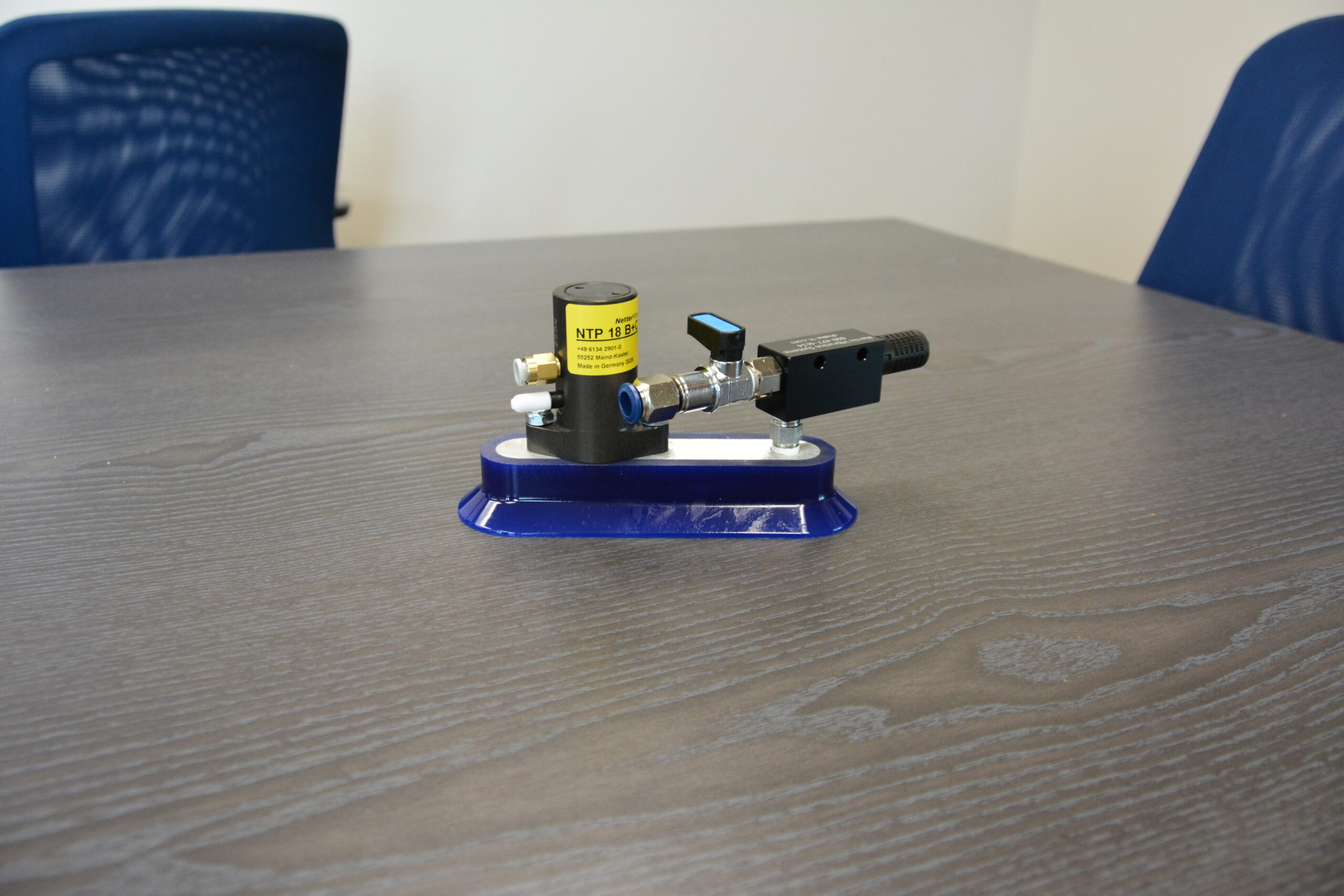

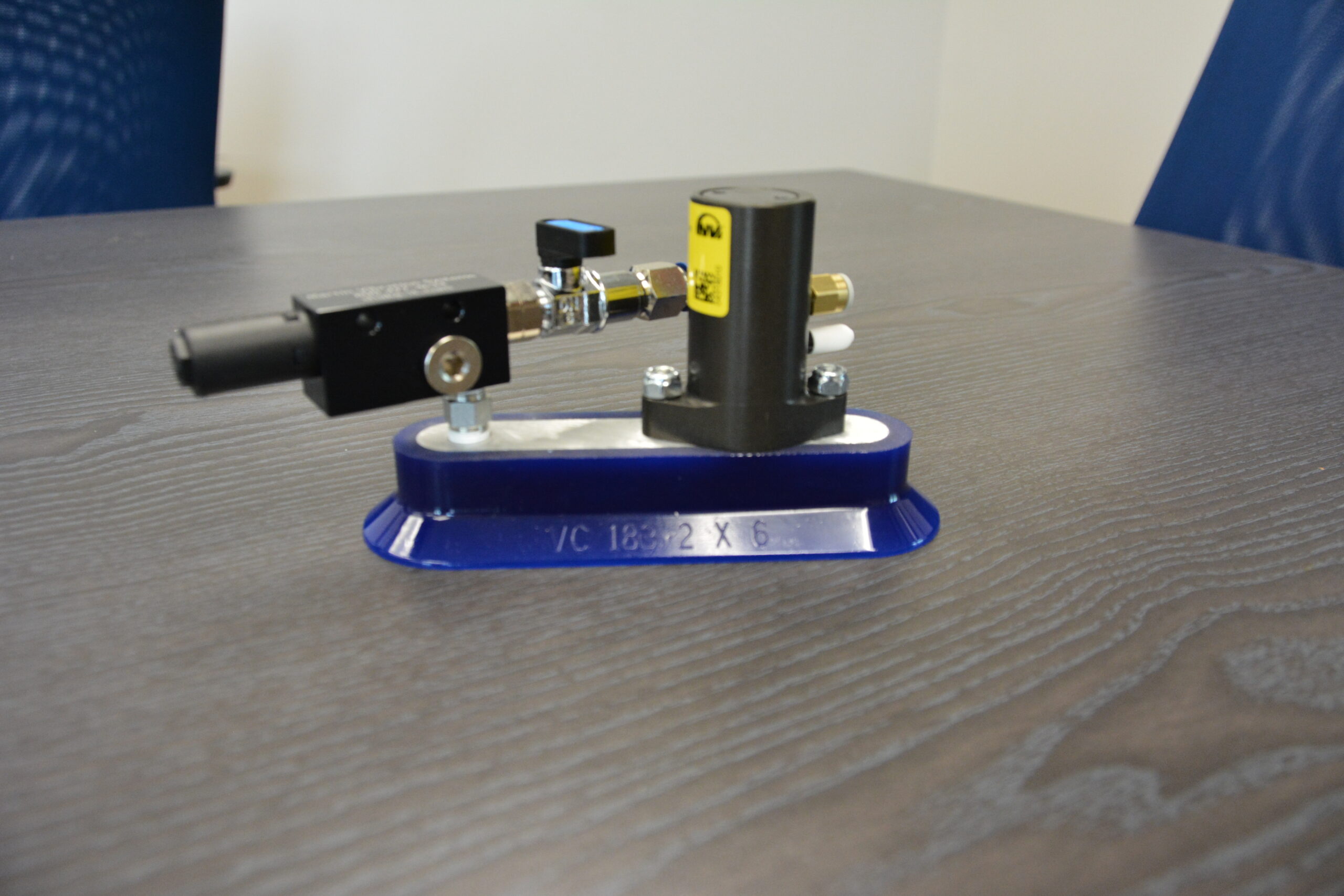

MARTIN® VAC-MOUNT™ Portable Vibrators – portable hopper vibrator

MARTIN® VAC-MOUNT™ Portable Vibrators are designed for ease of use and portability. The vacuum mounts allow it to be moved around on the equipment so you can apply vibration to specific trouble spots. It's also easy to move from one hopper to the next in seconds. Excellent for unloading, cleaning, compaction, and testing.


Best uses and case studies for MARTIN® VAC-MOUNT™ Portable Vibrators

  • Broken Glass Buildup – MARTIN® VAC-MOUNT™ Portable Vibrator
    Problem

    A large plate-glass manufacturer in Toronto was dealing with two problems: broken glass in a scrap reclaim bin not vacating, and compensation claims for back injuries resulting from the periodic cleaning of this bin.

    Situation

    Except for scheduled maintenance or breakdown, the line is never shut down. Thus, when the glass is not being cut and stacked, the material is “thrashed” and recycled. It was at this station the problem existed. The bin, approximately 8’ x 30’ in size, had less than a 2-1/2′ drop (roughly 5°). The operators were using long poles to push the glass shards to the discharge, which periodically resulted in a back injury claim.

    Solution

    We installed a MARTIN® VAC-MOUNT™ Portable Vibrator from MARTIN® Vibration Systems. Demonstration was key in showing the customer the solution to their problem. Even though there was noise from the thrasher, the customer may now vibrate and clean this bin during cutting and stacking without excessive noise from piston type vibrators.
